Logging Scenario - Send Local Logs to a Splunk Indexer

Last modified on March 24, 2023

Scenario: you want to save gateway/relay logs to a Splunk Indexer. This guide presents a simple method to send all gateway/relay logs to a Splunk Indexer.

Setting up the export

  1. Enable relay logging in the Admin UI under Settings / Log Encryption & Storage. Ensure logging is set to FILE.

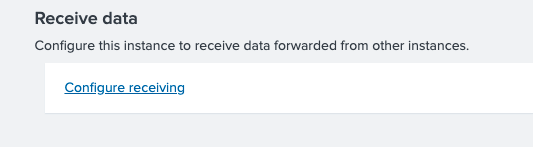

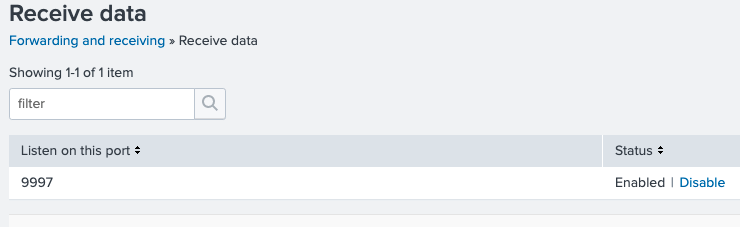

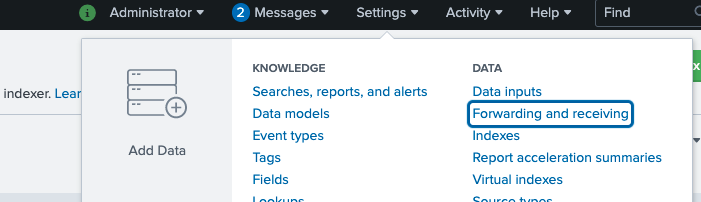

  2. Configure your indexer to receive the date from the forwarder:

    Configure Indexer 1
    Configure Indexer 1
    Configure Indexer 13
    Configure Indexer 13
    Configure Indexer 3
    Configure Indexer 3

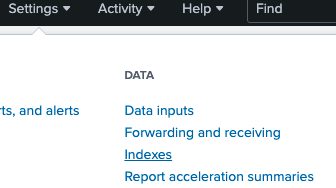

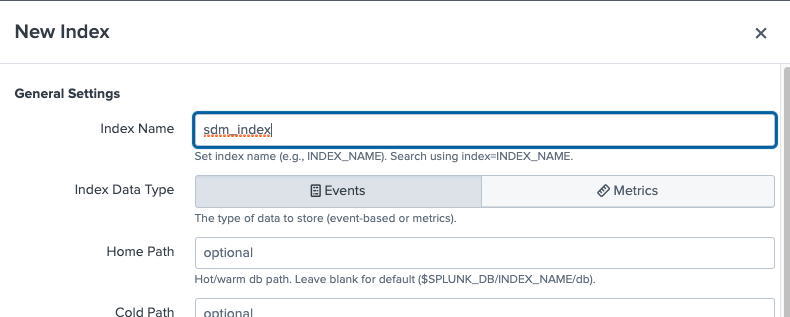

  3. Create an index for StrongDM, called “sdm_index” in this example:

    Create Index 1
    Create Index 1
    Create Index 2
    Create Index 2
    Create Index 3
    Create Index 3

  4. Install the forwarder, then configure the monitor.

    wget -O splunkforwarder-8.1.3-63079c59e632-linux-2.6-x86_64.rpm 'https://www.splunk.com/bin/splunk/DownloadActivityServlet?architecture=x86_64&platform=linux&version=8.1.3&product=universalforwarder&filename=splunkforwarder-8.1.3-63079c59e632-linux-2.6-x86_64.rpm&wget=true'
    sudo rpm -ihv splunkforwarder-8.1.3-63079c59e632-linux-2.6-x86_64.rpm
    export PATH=$PATH:/opt/splunkforwarder/bin
    splunk start

    splunk list forward-server
    Active forwards:
        ec2-34-210-43-66.us-west-2.compute.amazonaws.com:9997
    Configured but inactive forwards:
        None

    splunk add monitor /home/ec2-user/.sdm/logs/ -index sdm_index -sourcetype sdm

    splunk list monitor
    [...]
    /home/ec2-user/.sdm/logs
            /home/ec2-user/.sdm/logs/relay.1616439304.0.log
            /home/ec2-user/.sdm/logs/relay.1616439311.0.log
            /home/ec2-user/.sdm/logs/relay.1616595755.0.log
            /home/ec2-user/.sdm/logs/relay.1616604787.0.log
            /home/ec2-user/.sdm/logs/relay.1616652500.0.log
    [...]

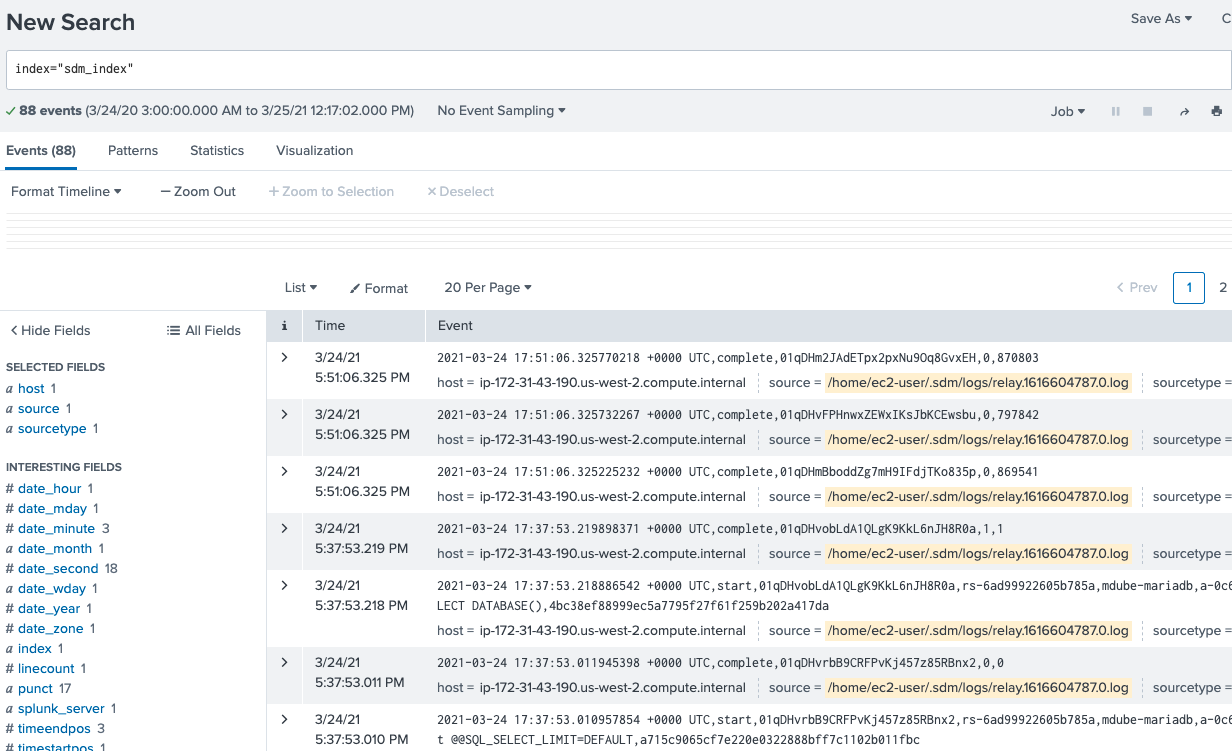

  5. You can search for “sdm_index” on the indexer’s search:

    Indexer Search
    Indexer Search
